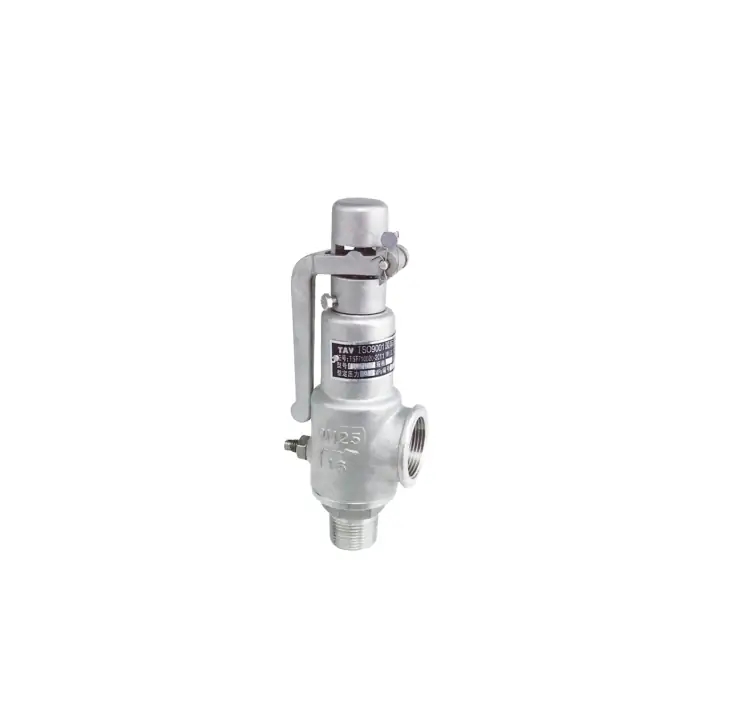

Type A28 Safety Valve



Safety Valves, angle type



Low lift safety valve

Standard safety valve for fluids

Metal to metal seated, with lift device

Connection end acc. to NPT/PT/G thread



Applications:

Provided as safety device for protection against excessive pressure in pressure vessels.

"Approved for  gases, vapours and fluids."

Working temperatures: ≤ 300℃



Standards Compliance:

Design and Manufacture: GB/T 12241-2005, GB/T 12243-2005

Face to Face(end to end): JB/T 2203-1999

Test and Inspection: GB/T 12243-2005



Material for main parts



NO Name of part A21H-C/A21F,KA21Y-C Material A21W-P/A21F-P /KA21Y-P Material A21Y-R Materials
1 Body HT350 304 316
2 Nozzle 35 304 316
3 Adjust ring 2Cr13 304 316
4 Disc 2Cr13 304 316
5 Spring 50CrVA 50CrVA coated teflon 50CrVA coated teflon
6 Stem 2Cr13 2Cr13 304
7 Adjusting bolt 45 2Cr13 304
8 Cap ZG200-400 ZG200-400 304
Sealing surface of material "H" depositing D507, "W" same as body, "Y" depositing stellite



Essential:

Valves are delivered at a set pressure, therefore when ordering

Please confirm set pressure, medium and temperature



TS

Safety accessory and Safety protection device

Manufacture License of Special Equipment, People's republic of China



Dimensions(mm)

DN do Rc L L1 G H
15 10 1/2" 37 65 3/4" 196
20 12 3/4" 40 70 1" 215
25 15 1" 45 78 1 1/4" 234
32 20 1 1/4" 55 90 1 1/2" 302
40 25 1 1/2" 67 105 2" 326
50 32 2" 76 115 2 1/2" 348
65 40 2 1/2" 110 145 3" 370
80 50 3" 110 145 4" 410

Remark: NPT, PT, G thread are accepted

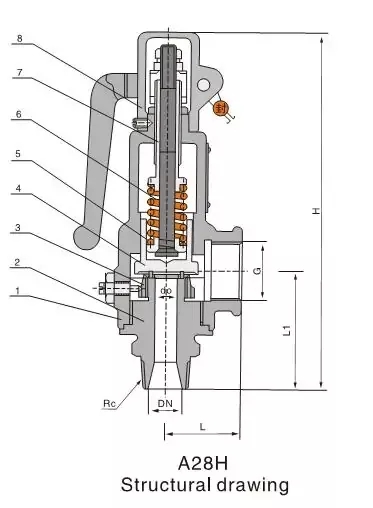

A28H

Full Lift with Plain Lever
