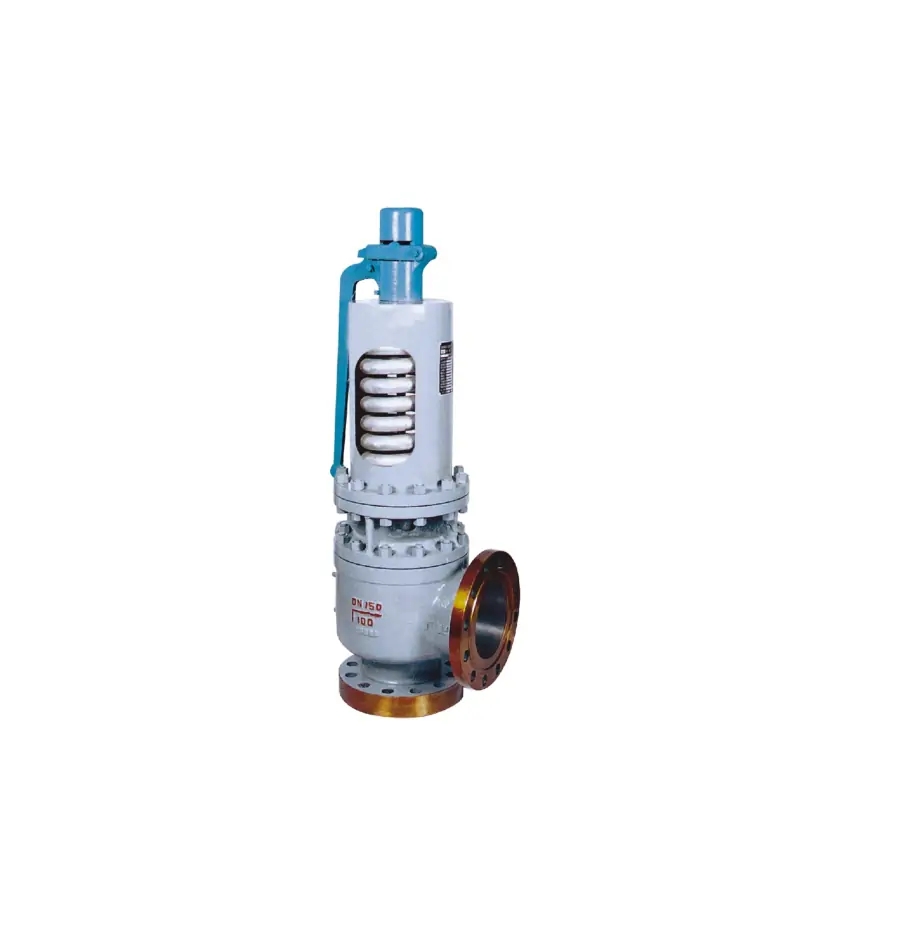

Type A48SC - Safety Valve



Safety Valves, angle type



Full lift safety valve

Standard safety valve for fluids

Metal to metal seated, with lifting device,

Inlet: Flanged connection acc. to ANSI B16.5

Outlet: Flanged connection acc. to ANSI B16.5



Open bonnet, with radiator



Applications:

Provided as safety device for protection against excessive pressure in pressure vessels.

Approved for gases, vapours and fluids.



Standards Compliance:

Design and Manufacture: API RP 520

Face to Face(end to end): API 526

Test and Inspection: API 527



Main property specifiecation



Mormal Pressure PN 150 300 600 900 1500 2500
Body strength Ps(Mpa) 3.0 7.5 15 22.5 38.0 63
Set pressure Pk(Mpa) 0.1-2 1.6-5 3.2-10 8-15 10-25 16-40
Seal pressure Pm(Mpa) 90%Pk
Reseation pressure Ph(Mpa) ≥90%Pk
Relieving Pressure Pp(Mpa) ≤1.03Pk
Lift height H(mm) ≥1/4 d0
Appropriate                 temp. C ≤420℃
I ≤500℃
V ≤540℃
Appropriate       Medium Fluids, Steam



Code of throat diameter

Code Diameter Code Diameter
D 10 L 50
E 13 M 55
F 16 N 60
G 20.5 P 72
H 26 Q 96
J 33 R 115
K 40 T 148

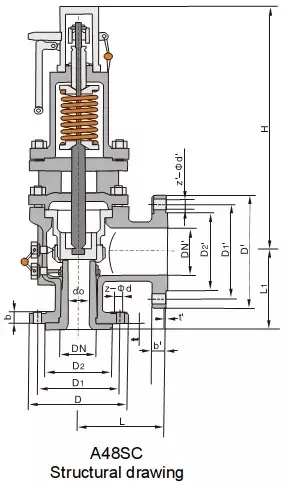

Main Dimensions



A48SC150, A48SC150I, A48SC150V
Nominal Diameter (in) Dimensions(mm)  Inlet flange 150Lb
d0 D D1 D2 b t Z-Φd DN' D' D1' D2' b' t Z'-Φd' L L1 H
1/2" x 3/4" D 89 60.5 35 12 5 4-15 20 98 70 43 14 1.6 4-15 90 90 380
3/4" x 1" D 98 70 43 14 5 4-15 25 108 79.5 51 15 1.6 4-15 96 92 390
1" x 11/2" D 108 79.5 51 15 5 4-15 40 127 98.5 73 18 1.6 4-15 115 105 395
1" x 2" D 108 79.5 51 15 5 4-15 50 152 120.5 92 18 1.6 4-19 115 105 395
11/2" x 2" G 127 98.5 73 18 5 4-15 50 152 120.5 92 18 1.6 4-19 121 124 420
11/2" x 21/2" G 127 98.5 73 18 5 4-15 65 178 139.5 105 20 1.6 4-19 121 124 420
11/2" x3" G 127 98.5 73 18 5 4-15 80 190 152.5 127 22 1.6 4-19 124 130 430
2" x21/2" H 152 120.5 92 18 5 4-19 65 178 139.5 105 20 1.6 4-19 124 130 460
2" x 3" J 152 120.5 92 18 5 4-19 80 190 152.5 127 22 1.6 4-19 124 130 460
21/2" x 4" J 178 139.5 105 20 5 4-19 100 229 190.5 157 24 1.6 8-19 143 137 480
3" x 4" L 190 152.5 127 22 5 4-19 100 229 190.5 157 24 1.6 8-19 162 156 430
4" x 6" N 229 190.5 157 24 10 8-19 150 279 241.5 216 26 1.6 8-22 210 197 610
6" x 8" P 279 241.5 216 26 10 8-22 200 343 298.5 270 29 1.6 8-22 241 240 780
8" x10" R 343 298.5 270 29 10 8-22 250 406 362 324 31 1.6 12-25 279 276 840
12" x14" T 483 432 381 32 10 12-25 350 533 476 413 35 1.6 12-29 370 360 980

Remark: 150Lb for outlet flange



A48SC300, A48SC300I, A48SC300V
Nominal Diameter (in) Dimensions(mm)  Inlet flange  300Lb
d0 D D1 D2 b t Z-Φd DN' D' D1' D2' b' t Z'-Φd' L L1 H
1/2" x 3/4" D 95 66.5 35 15 5 4-15 20 98 70 43 14 1.6 4-15 90 90 380
3/4" x 1" D 117 82.5 43 16 5 4-19 25 108 79.5 51 15 1.6 4-15 96 92 390
1" x 11/2" D 124 89 51 18 5 4-19 40 127 98.5 73 18 1.6 4-15 115 105 395
1" x 2" D 124 89 51 18 5 4-19 50 152 120.5 92 18 1.6 4-19 115 105 395
11/2" x 2" F 156 114.5 73 20 5 4-22 50 152 120.5 92 18 1.6 4-19 121 124 420
11/2" x 21/2" F 156 114.5 73 20 5 4-22 65 178 139.5 105 20 1.6 4-19 121 124 420
11/2" x3" F 156 114.5 73 20 5 4-22 80 190 152.5 127 22 1.6 4-19 124 130 430
2" x21/2" H 165 127 92 22 5 8-19 65 178 139.5 105 20 1.6 4-19 124 130 460
2" x 3" H 165 127 92 22 5 8-19 80 190 152.5 127 22 1.6 4-19 124 130 460
21/2" x 4" J 190 149 105 24 5 8-22 100 229 190.5 157 24 1.6 8-19 143 137 480
3" x 4" L 210 168.5 127 28 5 8-22 100 229 190.5 157 24 1.6 8-19 162 156 430
4" x 6" N 254 200 157 32 10 8-22 150 279 241.5 216 26 1.6 8-22 210 197 610
6" x 8" P 318 270 216 38 10 12-22 200 343 298.5 270 29 1.6 8-22 241 240 780
8" x10" Q 381 330 270 42 10 12-25 250 406 362 324 31 1.6 12-25 279 276 840

Remark: 150Lb for outlet flange



A48SC600, A48SC600I, A48SC600V
Nominal Diameter (in) Dimensions(mm)  Inlet flange  600Lb
d0 D D1 D2 b t Z-Φd DN' D' D1' D2' b' t Z'-Φd' L L1 H
3/4" x 1" D 118 82.5 43 16 7 4-19 25 108 79.5 51 15 1.6 4-15 96 92 400
1" x 2" D 124 89 51 19 7 4-19 50 152 120.5 92 18 1.6 4-19 115 105 420
11/2" x 2" F 156 114.5 73 22 7 4-22 50 152 120.5 92 18 1.6 4-19 152 124 440
11/2" x 21/2" F 156 114.5 73 22 7 4-22 65 178 139.5 105 20 1.6 4-19 152 124 440
11/2" x3" F 156 114.5 73 22 7 4-22 80 190 152.5 127 22 1.6 4-19 152 124 450
2" x21/2" H 165 127 92 26 7 8-19 65 178 139.5 105 20 1.6 4-19 162 154 480
2" x 3" H 165 127 92 26 7 8-19 80 190 152.5 127 22 1.6 4-19 162 154 480
21/2" x 4" H 190 149 100 29 7 8-22 100 229 190.5 157 24 1.6 8-19 143 165 490
3" x 4" K 210 168 127 32 10 8-22 100 229 190.5 157 24 1.6 8-19 162 155 540
4" x 6" N 273 216 157 38 10 8-25 150 279 241.5 216 26 1.6 8-22 210 200 620
6" x 8" R 356 292 216 46 10 12-29 200 343 298.5 270 29 1.6 8-22 241 240 790

Remark: 150Lb for outlet flange



A48SC900, A48SC900I, A48SC900V
Nominal Diameter (in) Dimensions(mm)   Inlet flange  900Lb
d0 D D1 D2 b t Z-Φd DN' D' D1' D2' b' t Z'-Φd' L L1 H
11/2" x 2" F 178 123.8 73 32 10 4-29 50 152 120.5 92 18 1.6 4-19 165 124 440
2" x 3" H 216 165.1 92 38 10 8-25 80 190 152.5 127 22 1.6 4-19 162 154 480
3" x 4" J 241 190.5 127 38 10 8-25 100 229 190.5 157 24 1.6 8-19 181 184 550
4" x 6" K 292 234.9 157 44 12 8-32 150 279 241.5 216 26 1.6 8-22 222 197 630

Remark: 150Lb for outlet flange



A48SC1500, A48SC1500I, A48SC1500V
Nominal Diameter (in) Dimensions(mm)  Inlet flange  1500Lb
d0 D D1 D2 b t Z-Φd DN' D' D1' D2' b' t Z'-Φd' L L1 H
1" x 11/2" D 149 101.6 51 28 15 4-25 40 156 114.5 73 20 1.6 4-19 125 125 420
11/2" x 21/2" E 178 123.8 73 32 14 4-28 40 156 114.5 73 20 1.6 4-19 150 194 450
11/2" x 2" E 178 123.8 73 32 15 4-28 50 165 127 92 22 1.6 8-19 150 194 450
11/2" x3" E 178 123.8 73 41 17 4-29 80 210 268.5 127 31 1.6 8-22 155 254 450

Remark: 300Lb for outlet flange



A48SC2500, A48SC2500V
Nominal Diameter (in) Dimensions(mm)  Inlet flange  2500Lb
d0 D D1 D2 b t Z-Φd DN' D' D1' D2' b' t Z'-Φd' L L1 H
11/2" x 21/2" F 205 146.0 73 45 17 4-32 65 190 149 105 27 1.6 8-22 165 140 670

Remark: 300Lb for outlet flange



Materials for main parts

NO Name of part Materials A48SY-C Materials A48SY-I Materials A48SY-V
1 Body WCB 1Cr5Mo 15Cr1Mo1V
2 Nozzle 2Cr13 304 12Cr1MoVA
3 Adjusting Ring 2Cr13 304 304
4 Disc 2Cr13 17-4PH 17-4PH
5 Guide sleeve 2Cr13 304 304
6 Bonnet ZG230-450 ZG230-450 ZG230-450
7 Spring 50CrVA 50CrVA 50CrVA
8 Stem 2Cr13 2Cr13 2Cr13
9 Adjusting bolt 45 2Cr13 2Cr13
10 Cap ZG200-400 ZG200-400 ZG200-400
11 Radiator ZG230-450 ZG230-450 ZG230-450
Sealing surface of material "Y" depositing stellite



Essential:

Valves are delivered at a set pressure, therefore when ordering

Please confirm set pressure, medium and temperature



TS

Safety accessory and Safety protection device

Manufacture License of Special Equipment, People's republic of China

A48SC

Flanged ends for HP and Superheared Steam
