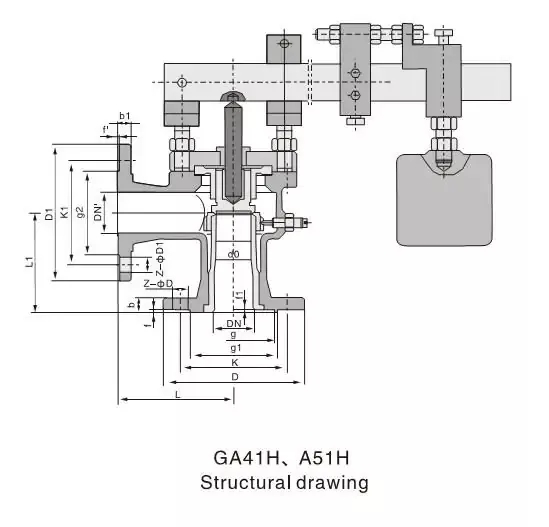

Dimensions(mm)



(DN) d0 L L1 D K g1 f b Z-Φd0 DN' D1 K1 g2 b1 f Z-Φd1
25 20 100 85 115 85 65 2 16 4-14 25 115 85 65 16 2 4-14
32 25 115 100 140 100 78 2 18 4-18 32 140 100 78 18 2 4-18
40 32 120 110 150 110 85 3 18 4-18 40 150 110 85 18 3 4-18
50 40 135 120 165 125 100 3 20 4-18 50 165 125 100 20 3 4-18
80 65 160 135 200 160 135 3 20 8-18 80 200 160 135 20 3 8-18
100 80 170 160 220 180 155 3 22 8-18 100 220 180 155 22 3 8-18
150 125 205 195 285 240 210 3 24 8-23 150 285 240 210 24 3 8-23
200 150 240 230 340 295 265 3 26 12-23 200 340 295 265 26 3 12-23
GA41H A51H

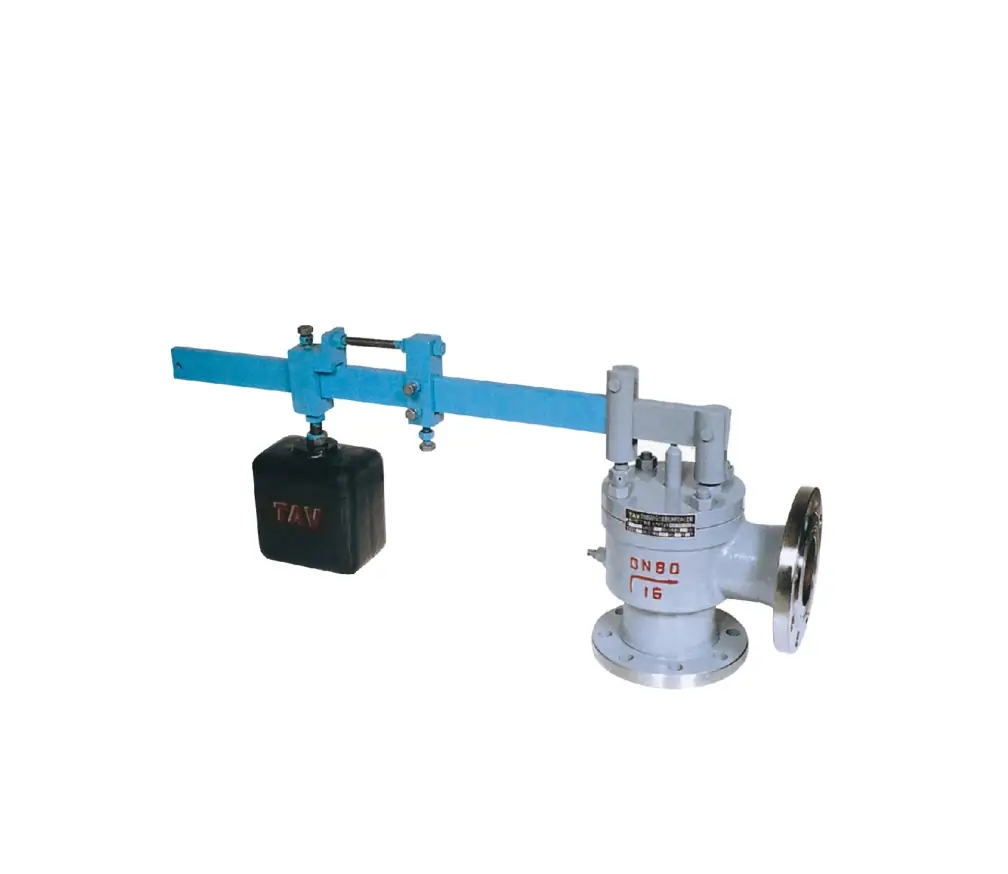

Weight loaded, angle type with single lever
