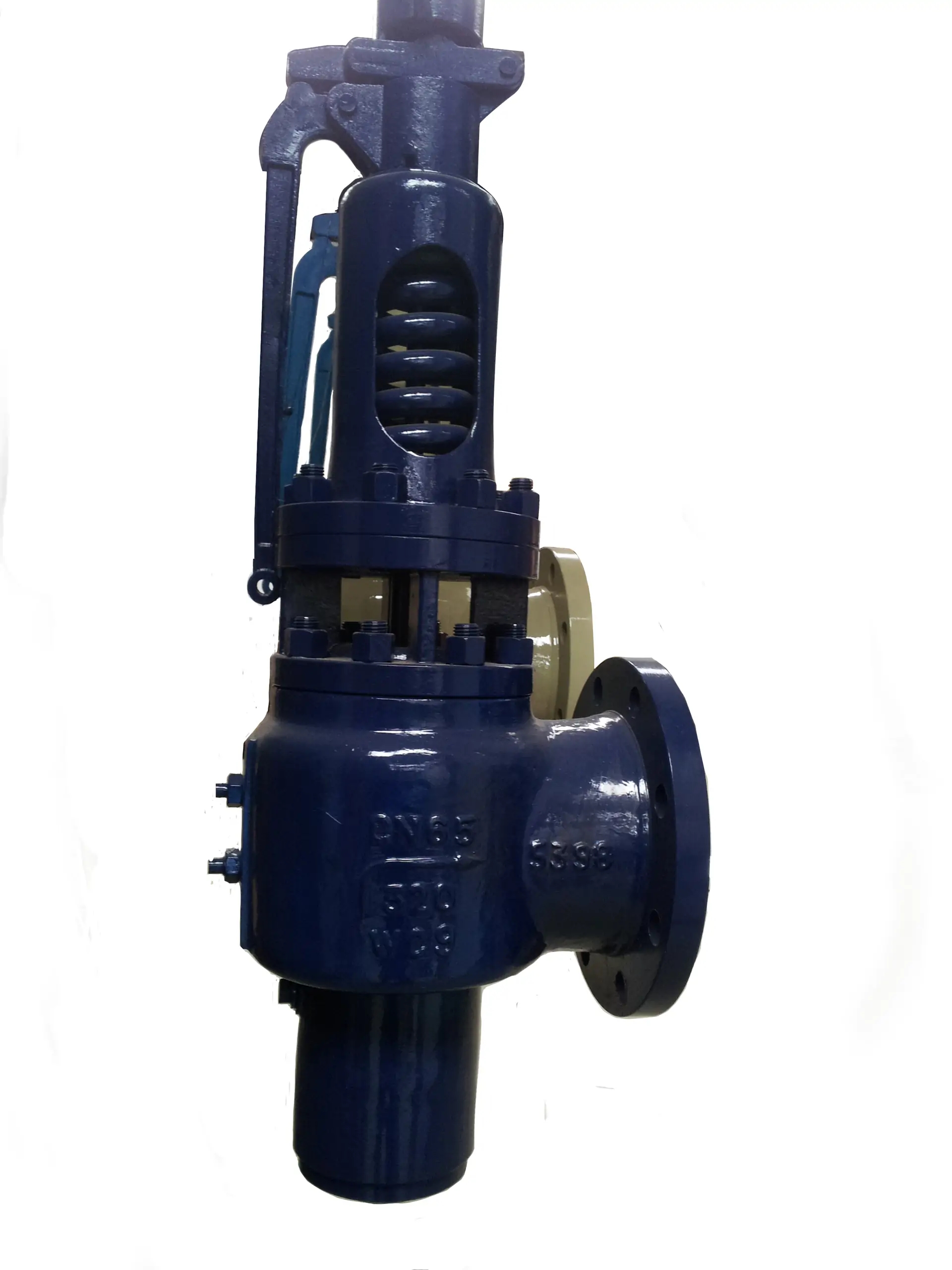

A68Y-20(W Series)



Instruction

This valve is used for power plant boilers, pressure cintainers, pressure and temperature reducing device and other faciltties. It serves prevent the pressure exceeding the highest allowed pressure value and ensure the satefy of te device when working.



Structure briefing

1. The main characteristics of the spring fully bore type safety valve are: simple structure, good seal performance, accurrate opening pressure large discharge capablity, low differential reseating pressure and convenient adjustment, etc.

2.Nozzle seat: It is the loware nozzle type seat. The speed of the steam reaches the velocity of sound when passing the exit way of the seat. The sealing surface is welded by cobalt hard alloy. Large displacement coefficient, anti-friction, corrosion resistance and long durability are recognized.

3. Thermo elastic disc: the disc is thermo elastic structure. Taking the advantage of its monor out-of-shape feature when under the medium pressure, the seal ability has been raised and the problem that pre-discharge phenomenon of the main safety happens when the medium pressure approaching the set pressure has been overcome. The sealed surface of the disc has adopted the advanced technology of heat hardening to increase the hardness and the ability of anti-friction and corrsion resistance.

4. Upper Adjusting ring: the valve can acquire appropriate reseating pressure by adjusting the adjusting ring.

5. Back pressue adjusting sleeve: it is an auxiliary apparatus the serves to adjust the back pressure of the disc to acquire appropriate dif-ferential pressure for seat returning.



Installation instruction

1. The safety valve shall be installed vertically and it would be better to install the valve directly upon the adaptor of the contcuner or the pipe. The inside diameter of the adaptor shall be no less than that of the inlet pipe of the safety valve.

2. To avoid the thermal stress that is caused by the thermal expansion of the discharge pipe, the exit way of the safety valve shall be expansion with appropriate expansion joint. The inside diameter of the discharge pipe should larger that the diameter of the exit way of the valve. Its length shall be as short as possible and no bent is allowed. The weight of both the discharge pipe and the expansion joint shaal not be applied to the safety valve, and they shall be fastened upon the con-struction. The distance between both centerlines of the discharge pipe and the body shall be as short as possible.

3. The exit way of the muffler shall have enough area, in order to avoid producing back pressure that would afect the discharge capability of the valve.

4. Water drainage pipes shall be installed at the ends of both the exhaust pipe and the body; the exit of the back pressure adjusting sleeve shaal be equipped with short bend.

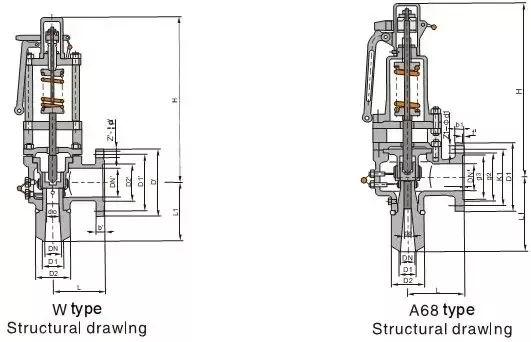

Wtype main external and connecting Dimensions(mm)





Type (DN) L L1 D0 H DN' D D1' D2' B' Z'-Φd'
A68Y-20 65 210 290 48 923 150 300 250 204 30 8-25
A68Y-P5410V 65 210 290 48 923 150 300 250 204 30 8-25
A68Y-20 80 210 290 52 923 150 300 250 204 30 8-25
A68Y-P5410V 80 210 290 52 923 150 300 250 204 30 8-25
A68Y-25 65 210 290 48 923 150 300 250 204 30 8-25
A68Y-P5414V 65 210 290 48 923 150 300 250 204 30 8-25
A68Y-25 80 210 290 52 1003 150 300 250 204 30 8-25
A68Y-P5414V 80 210 290 52 1003 150 300 250 204 30 8-25
A68Y-32 65 210 290 48 1083 150 300 250 204 30 8-25
A68Y-P5420V 65 210 290 48 1083 150 300 250 204 30 8-25
A68Y-32 80 210 290 52 1083 150 300 250 204 30 8-25
A68Y-P5420V 80 210 290 52 1083 150 300 250 204 30 8-25
A68Y-10 150 310 525 100 1158 300 485 430 390 36 16-30
A68Y-P543.82V 150 310 525 100 1158 300 485 430 390 36 16-30
A68Y-10 200 310 525 125 1158 300 485 430 390 36 16-30
A68Y-P542.5V 200 310 525 125 1158 300 485 430 390 36 16-30





A68 type main external and connecting dimension(mm)



Type (DN) L L1 D0 DN' D D1' D2' B' Z'-Φd'
A68E210/550V1 65 240 280 46 100 265 210 150 38 8-30
A68SB160/400C1 65 260 280 52 150 320 250 204 30 8-25
A68E210/400C1 80 190 305 58 150 340 280 204 38 8-34
A68E210/550V1 80 190 305 58 150 340 280 204 38 8-34
A68E210/550V2 80 190 305 60 150 300 250 204 30 8-25
A68E160/550V1 100 320 340 70 250 445 385 313 42 12-34
A68SB100V1 100 260 325 80 150 300 250 204 30 8-25
A68SB100V2 100 260 325 85 150 300 250 204 30 8-25
A68SB100C1 150 305 385 115 250 445 385 313 42 12-34
A68SB100C2 150 305 385 110 250 445 385 313 42 12-34
A68SB100C3 150 305 385 120 250 445 385 313 42 12-34
A68SB100V1 150 305 385 115 250 445 385 313 42 12-34
A68SB100V2 150 305 385 100 250 445 385 313 42 12-34
A68SC2500C2 1 1/2"(40) 155 165 18 Outlet 3" x 300Lb
A68SC1500I1 2"(50) 216 280 33 Outlet 3" x 300Lb
A68C1500C1 2 1/2"(65) 216 280 40 Outlet 3" x 300Lb
A68C1500C2 2 1/2"(65) 216 305 46 Outlet 3" x 300Lb

The dimensions of D1, D2 can manufacture upon client's requirement.

A68Y-20V

BW ends for HP and superheated steam
