Materials for main parts

No. Name of part A40Y-C                 Materials A40Y-P              Materials A41Y-I                    Materials
1 Flange 35/35CrMoA 2Cr13 0Cr18Ni9Ti
2 Nozzle 2Cr13 0Cr18Ni9Ti 0Cr18Ni12Mo2Ti
3 Body 35/40 0Cr18Ni9Ti 0Cr18Ni12Mo2Ti
4 Disc 2Cr13 0Cr18Ni9Ti 0Cr18Ni12Mo2Ti
5 Guide sleeve 2Cr13 0Cr18Ni9Ti 0Cr18Ni12Mo2Ti
6 Spring 50CrVA 50CrVA Coated Teflon 50CrVA Coated Teflon
7 Stem 2Cr13 0Cr18Ni9Ti 0Cr18Ni12Mo2Ti
8 Bonnet ZG 230-450 0Cr18Ni9Ti 0Cr18Ni9Ti
9 Adjusting bolt 45 2Cr13 2Cr13
10 Cap ZG 200-400 0Cr18Ni9Ti 0Cr18Ni9Ti
material of Sealing surface                "H" Depositing D507               "Y" Depositing Stellite



Dimensions(mm)

Type (DN) d0 d M D K Z-Φd b d1 M1 D1 K1 Z1-Φd1 b1 L L1 ≈H
A41Y-160C A41Y-160P A41Y-160R (Single Flange) 15 8 20 M24 x 2 95 60 3-18 20 / M33 x 2 36 / / / 50 80 85
20 10 25 M27 x 2 95 60 3-18 20 / M33 x 2 48 / / / 50 80 85
25 12 28 M33 x 2 105 68 3-18 20 / M33 x 2 48 / / / 50 80 85
A41Y-160C A41Y-160P A41Y-160R 10 8 18 M24 x 2 95 60 3-18 20 29 M42 x 2 115 80 4-18 22 95 100 261
15 8 20 M24 x 2 95 60 3-18 20 29 M42 x 2 115 80 4-18 22 95 100 261
20 10 27 M33 x 2 105 68 3-18 20 29 M42 x 2 115 80 4-18 22 95 100 261
25 12 28 M33 x 2 105 68 3-18 20 50 M64 x 3 165 115 6-26 32 130 135 285
32 12.14.16 37 M42 x 2 115 80 4-18 22 50 M64 x 3 165 115 6-26 32 130 135 285
40 20 47 M52 x 2 165 115 6-26 28 65 M80 x 3 200 145 6-29 40 165 165 350
50 25 58 M64 x 2 165 115 6-26 32 80 M100 x 3 225 170 6-33 50 165 165 380
A41Y-320C A41Y-320P A41Y-320R 10 8 18 M24 x 2 95 60 3-18 20 29 M42 x 2 115 80 4-18 22 95 100 261
15 8 27 M33 x 2 105 68 3-18 20 29 M42 x 2 115 80 4-18 22 95 100 261
20 10 30 M36 x 2 110 75 3-18 20 29 M42 x 2 115 80 4-18 22 95 100 261
25 12 35 M42 x 2 115 80 4-18 22 50 M64 x 3 165 115 6-26 32 130 135 285
32 12.14.16 41 M48 x 2 135 95 4-22 25 50 M64 x 3 165 115 6-26 32 130 135 285
40 20 58 M64 x 2 165 115 6-26 32 65 M80 x 3 200 145 6-29 40 165 165 350
50 25 70 M80 x 2 200 145 6-29 40 80 M100 x 3 225 170 6-33 50 165 165 380

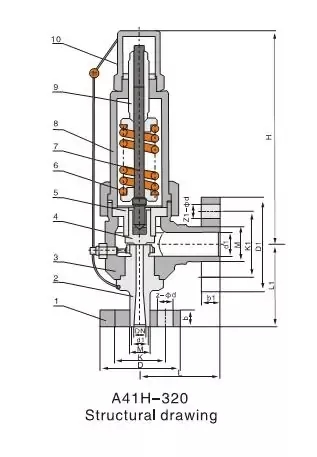

A41Y-160

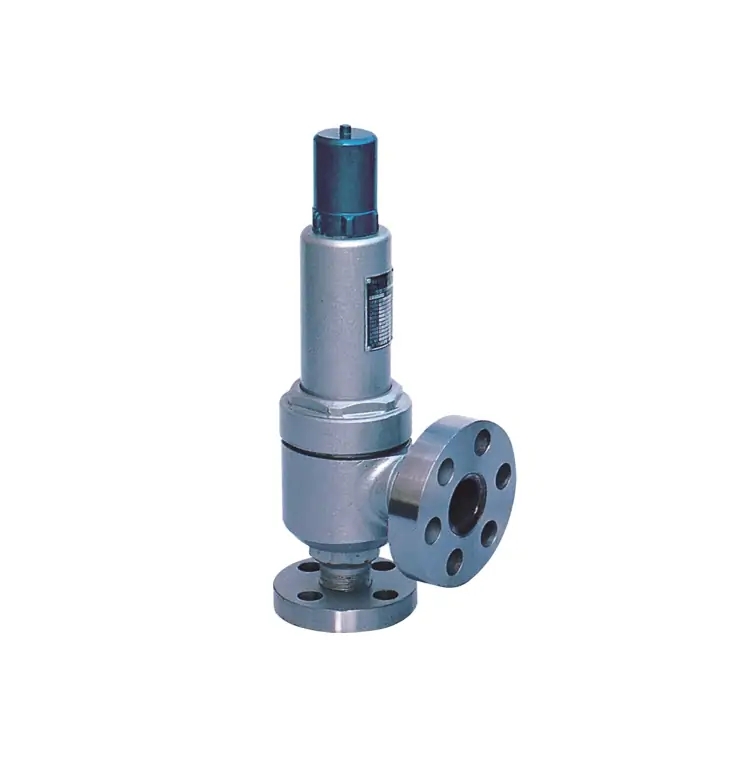

Closed bonnet with cap low lift for high pressure fluid
